- Place of Origin: jinan
- Brand Name: tongan
- Model Number: 001

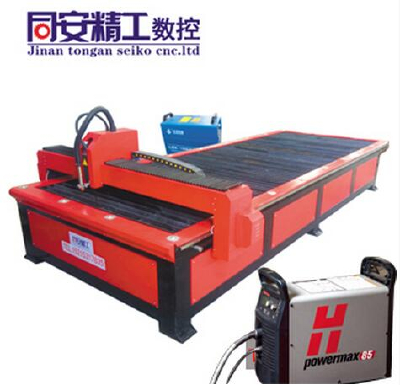

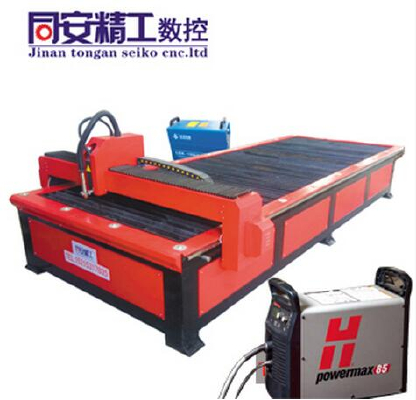

T-N industrial numerical control plasma cutting machine
Processing format:
TN-1530 1500 mm * 3000mm
TN-1540 1500 mm * 4000mm
TN-1560 1500 mm * 6000mm
Performance characteristics:
1 by Jugang welding, forming vibration effect with the one-time finish machining
2 strong, no deformation, good steel
The 3 Beijing start fire control system
4 industrial grade ARMT processing chip
5 color LCD screen display
6 dynamic graphic display, automatic tracking, slotting compensation point. Breakpoint recovery
7 way back function.
8 subversion of the traditional DC motor to adjust the high mode. Fast and smooth,
9 a key height calibration, operation is simple and convenient
10 servo motor
11 speed reducer and high precision gear rack,
12 to ensure that the noise is small, smooth, precise coordinates, mobile performance
13 power supply can be selected (domestic or imported power supply)
14 to ensure the accuracy of the workpiece cutting
15 perfect and reasonable design and cutting out of the high - finish cleansing of the workpiece is the best choice for a variety of plate shaped plate cutting.
The reasonable design of the platform, using the table 10mm steel plate after finishing erection on the bed surface, and then loaded on the iron rack after finishing the cover plate in the vertical protection, high strength flame plate is not damaged, the double table flatness in 0~ 1.5mm.
The reasonable slope leakage design, make the finished and broken material along the slope down to the foot of the two sides of a frame, safe and convenient.
The whole high subpision stepper motor with high precision gear rack, ensure its low noise, stable and accurate coordinates of mobile performance.
It adopts (optional) high pressure regulator and power supply with high sensitivity to the arc, automatically adjust the best cutting distance, in order to ensure the accuracy of the workpiece cutting.
technical parameter
Processing materials of iron, aluminum, galvanized sheet, white steel plate, titanium plate
Processing thickness 0.520mm
Cutting speed 0-10000mm/min
Power 8.5KW
Input voltage 3 phase 380V
Power frequency 50HZ
Plasma current domestic (or imported) power supply (optional)
File transfer mode USB interface
Working mode non contact arc ignition
- Place of Origin: jinan
- Brand Name: tongan
- Model Number: 001
